Large Industrial Machine Frames

About Steel Machine Frame, Base

It is a manufacturing method that uses iron plates and pipes and finishes products such as machine frames and mounts by processing such as cutting, bending, and welding. Specific examples of frame products include ducts, water tanks, mounts, covers, housings, tanks, brackets, and large ones such as cranes and ship parts.

Steel Material For Machine Frame, Base

STKR400



  • 100x150x12t
  • 100x200x12t
  • 150x150x12t
  • 150x150x6t
  • 150x200x12t
  • 200x100x9t
  • 200x200x12t

Types Of Steel Machine Frame Fabrication

  • Cutting / Laser processing
    Cutting processing is cutting square pipes and angle materials to the specified dimensions in the engineering drawing by laser.
  • Forming/Bending
    Forming sheet metal is done by bending a metal plate (sheet metal) with two upper and lower dies. There are V-bending, L-bending, Z-bending, etc. We mainly use a machine called a press brake to bend.
  • Welding
    Welding is melting the joints of two or more pieces with heat and joining them together. We use argon welding (TIG Welding) for joining.
  • Drilling / Machining
    Drilling and surface machining is using a machine such as a machining centre. Depending on the size of the frame, you may not be able to put on the machining table, so we can either drill it manually with a tool or with a laser.
  • Machining
    Using machine tools to create more precise and complex shaped structures. By scraping the material’s surface, we will achieve the required accuracy.
  • Granding
    Remove welding bead by using the angle grinder to get the flush surface.
  • Surface Treatment
    Surface treatment is performed after the sheet metal product is welded. We perform processes such as powder coating, plating, and silk printing. The purpose is to prevent rust and to decorate.

Common Steel Machine Frames Applications

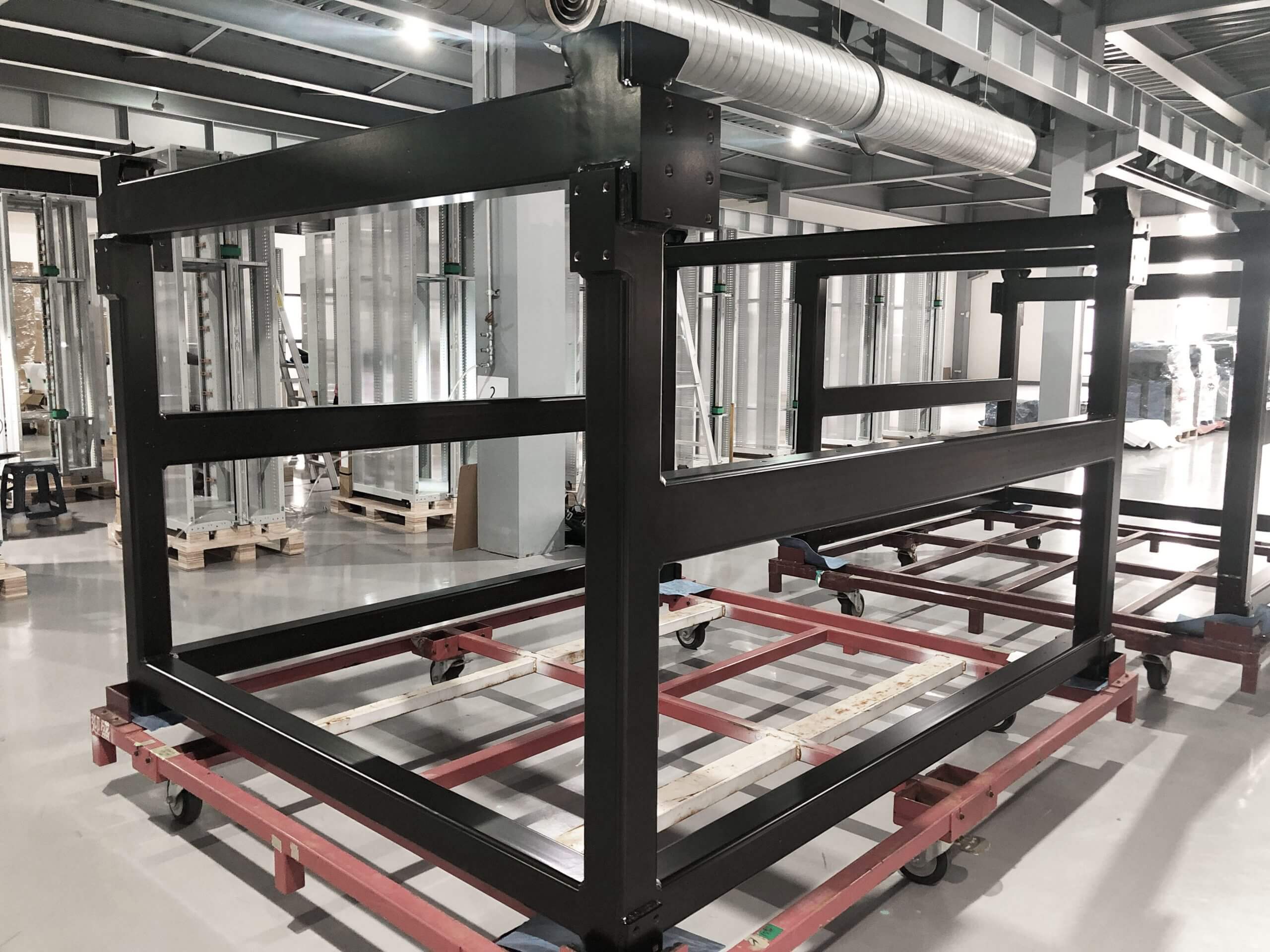

BLIKSEN-Semiconductor manufacturing equipment steel frame
Semiconductor Manufacturing Equipment Steel Frame
  • Plastic injection machine
  • Machine Tools
  • Power distribution box
  • Automated Optical Inspection Equipment (AOI)
  • FPD manufacturing device
  • Semiconductor manufacturing equipment
  • Solar cell manufacturing equipment
  • Fully automatic exposure equipment
  • Cleanroom for equipment manufacturing
  • Medical equipment
  • Server / Communication Equipment Rack

Sheet metal fabrication features

product_icon01
Supportive sheet
metal design
product_icon02
CWI certified
product_icon03
24H/7D Automatic
product_icon04
One-stop sheet metal processing in-house

Material

  • STKR400
  • STKR490
  • SS41

Thickness

  • 1.6mm-9mm

Surface
Treatment

  • Powder Coating
  • Screen printing

Processing
Methods

  • Laser Cutting
  • Punching
  • Bending
  • Welding
  • Surface Treatment

Can this sheet metal product be made? Leave it to BLIKSEN!

＼ Upload in 3 minutes ／
Free Quote
