Stainless Steel Machine Frame

About Machine Frame Fabrication

It is a manufacturing method that uses stainless steel plates and pipes and finishes products such as machine frames and mounts by processing such as cutting, bending, and welding. Angle materials and square steel pipes (square pipes) are often used as materials.

Types Of Machine Frames Fabrication

  • Cutting / Laser processing
    Cutting processing is cutting square pipes and angle materials to the specified dimensions in the engineering drawing by laser.
  • Forming/Bending
    Forming sheet metal is done by bending a metal plate (sheet metal) with two upper and lower dies. There are V-bending, L-bending, Z-bending, etc. We mainly use a machine called a press brake to bend.
  • Welding
    Welding is melting the joints of two or more pieces with heat and joining them together. We use argon welding (TIG Welding) for joining.
  • Drilling / Machining
    Drilling and surface machining is using a machine such as a machining centre. Depending on the size of the frame, you may not be able to put on the machining table, so we can either drill it manually with a tool or with a laser.
  • Surface treatment
    There are two finishing methods for welding beads on the corner joints of the stainless steel frames.
    1. Remove with a grinder and polish cleanly with buffing.
    2. Welding beads are not removed, but the burn is removed with a neutral electrolyte.

Common Stainless Steel Machine Frame Applications

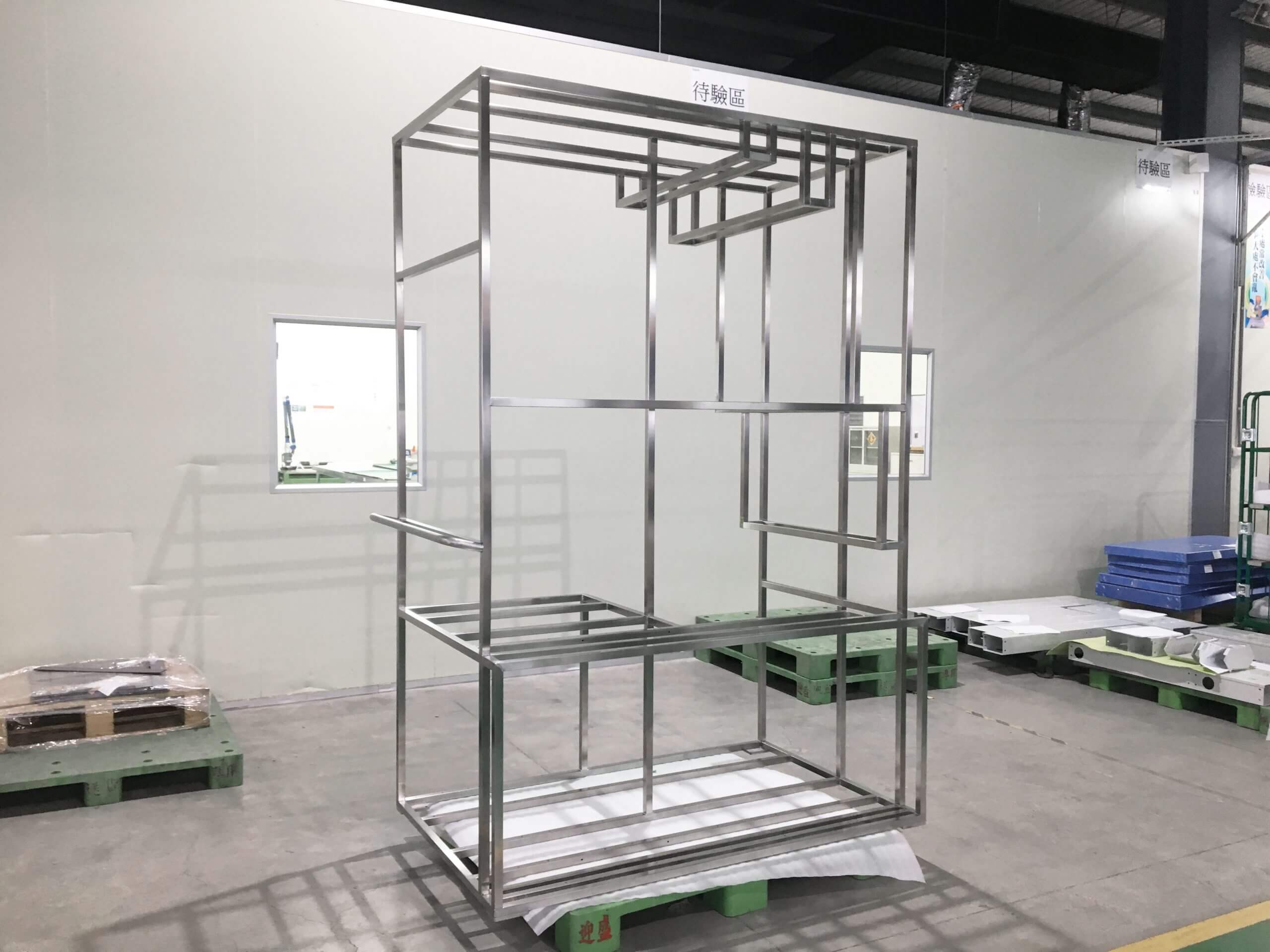

Semiconductor manufacturing equipment frame
Semiconductor manufacturing equipment frame
  • Plastic injection machine
  • Machine Tools
  • Power distribution box
  • Automated Optical Inspection Equipment (AOI)
  • FPD manufacturing device
  • Semiconductor manufacturing equipment
  • Solar cell manufacturing equipment
  • Fully automatic exposure equipment
  • Cleanroom for equipment manufacturing
  • Medical equipment
  • Server / Communication Equipment Rack

Sheet metal fabrication features

product_icon01
Supportive sheet
metal design
product_icon02
CWI certified
product_icon03
24H/7D Automatic
product_icon04
One-stop sheet metal processing in-house

Material

  • SUS304-BA
  • SUS304-HL

Thickness

  • 1.6mm-9mm

Surface
Treatment

  • BA
  • HL

Processing
Methods

  • Laser Cutting
  • Punching
  • Bending
  • Welding
  • Surface Treatment
